Thermoflon 6230

Thermoflon 6230

Thermoflon 6230

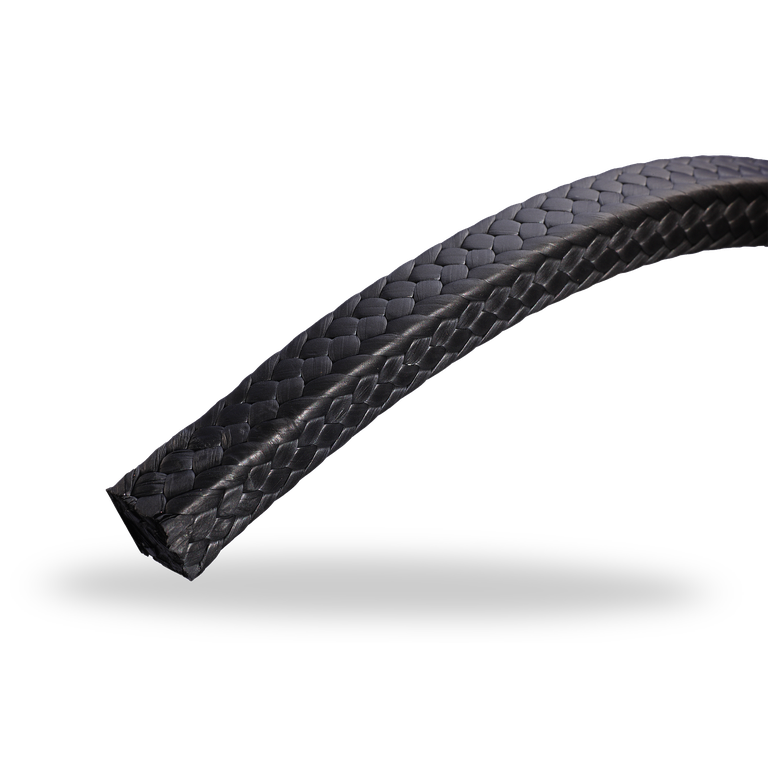

Thermoflon 6230 is a diagonally braided packing made from 100% genuine GFO (graphiteincorporated PTFE yarn). With its universal structure, the packing is used in almost every branch of industry.


  • Treats shafts gently
  • High cross-sectional stability
  • Highly flexible
  • Outstanding functional efficiency
  • Very good emergency running properties
  • Very high thermal conductivity
  • No embrittlement
  • Does not age
  • Long service life

Operating range

Pressure: p = 25 bar
Sliding velocity: vg = 25 m/s
Valves Pressure: p = 100 bar
Sliding velocity: vg = 2 m/s
Plunger Pumps
Pressure: p = 250 bar
Sliding velocity: vg = 2 m/s
Mixers, agitators, kneaders, filters
Pressure: p = 25 bar
Sliding velocity: vg = 2 m/s

  • Continuous operation:
    t = -200 °C … +280 °C
  • Hot water:
    without cooling... +140 °C

Chemical resistance:
pH = 2 ... 12
Not suitable for use in oxidizing media such as oleum (fuming nitric acid), gaseous fluorine and molten alkali metals.


6230/AK (braided in AK-profile)


For sealing hot water pumps, the required leakage must always emerge in liquid form in order to lubricate the packing. The compression packing will have to be cooled via a lantern ring or a jacket, gland or shaft cooling system if the heat radiation via the stuffing box housing is not sufficient.

Forms of supply

  • Sold by length, blank cuts, precompressed rings with straight or slanted cut
  • Box contents
    up to 6,35 mm: 1 kg
    7 - 10 mm: 2 kg
    11 - 13 mm: 3 kg
    14 - 24 mm: 5 kg
    from 25 mm: 10 kg
