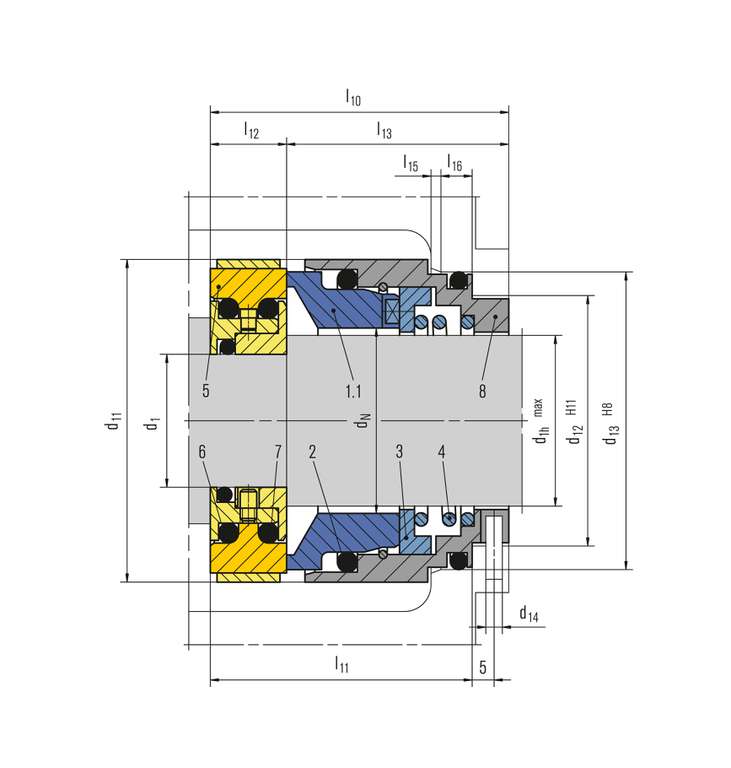

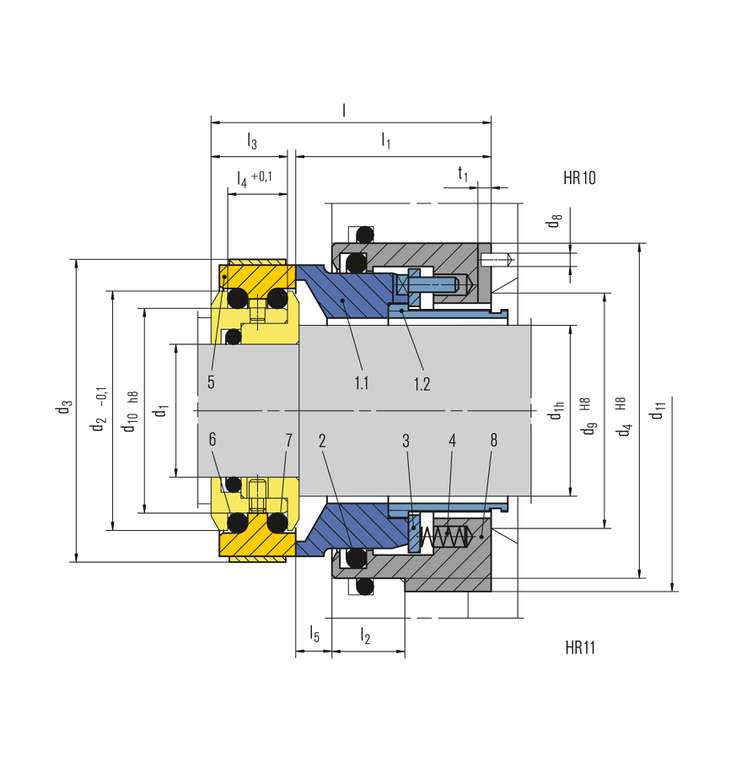

Item Part no.
DIN 24250
Description
1.1 472 Seal face
1.2 520 Sleeve
2 412.1 O-Ring
3 474 Thrust ring
4 477 Spring
5 475 Seat (G11)
6 412.2 O-Ring
7 412.3 O-Ring
8 441 Housing

Direction of installation: - from the impeller side HR10 - from the bearing side HR11

  • Single seal
  • Balanced
  • Independent of direction of rotation
  • Multiple springs stationary
  • Seat rotating
  • Seat arranged directly behind the impeller
  • Spring protection sleeve
  • Variant with cylindrical spring and acc. EN 12756 (HRZ1) available

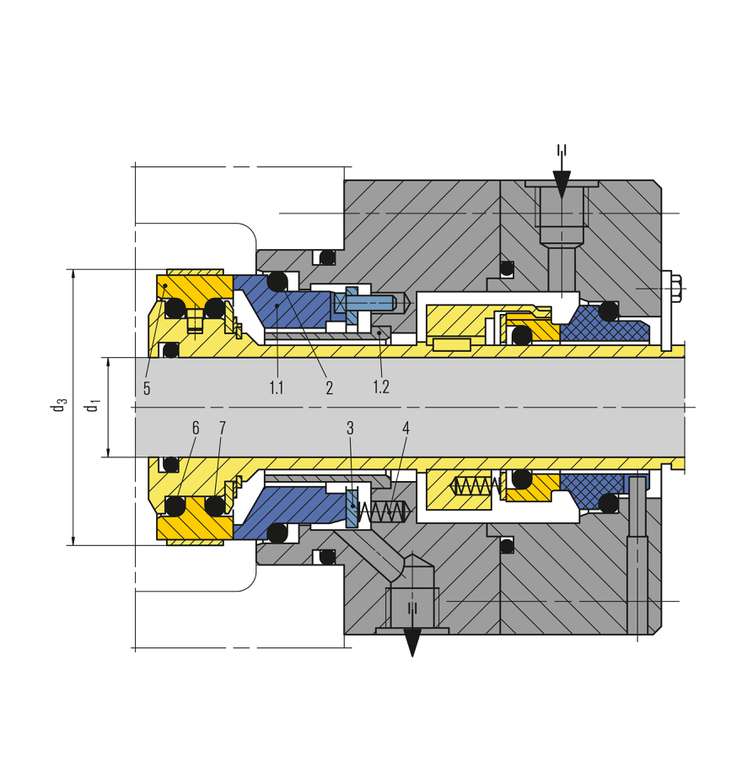

  • Variant as cartridge with/without guide sleeve for application with/without quench (HR2, HR3)

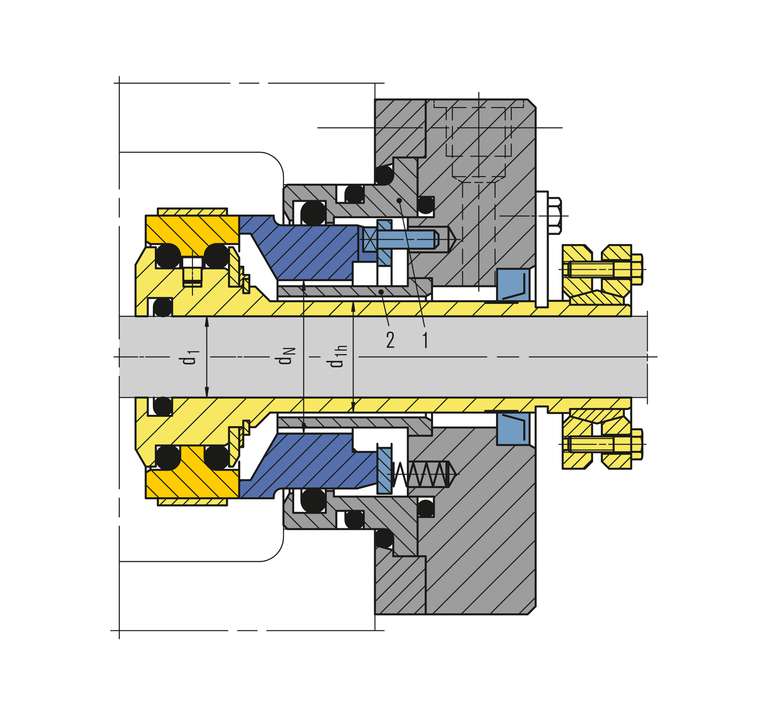

  • Dual seal as cartridge unit (HRKS-D) available
  • Especially for application in solids containing media without external flush or internal product circulation. Solids content 40 % (single seal) and 60 % (double seal)
  • Operation under vacuum without seat locking possible
  • Pumping screw for increased circulation available
  • Springs are protected from product and leakage
Shaft diameter:
dN = 36 ... 270 mm (1.4" ... 10.63")
Pressure: p1* = 16 bar (230 PSI)
Temperature:
t = -20 °C ... +160 °C (-4 °F ... +320 °F)
Sliding velocity: vg = 10 m/s (33 ft/s)

* For operation under vacuum it is necessary to arrange for quenching on the atmosphere side.
Seal face: Silicon carbide (Q1, Q2)
Seat: Silicon carbide (Q1, Q2)
  • Process industry
  • Oil and gas industry
  • Refining technology
  • Chemical industry
  • Power plant technology
  • Pulp and paper industry
  • Water and waste water technology
  • Mining industry
  • Sugar industry
  • Cement industry
  • Contaminated, abrasive and solids containing media
  • Sewage water pumps
  • Dredger pumps
  • Oil sand extraction
  • Suspension pumps of flue-gas desulphurization plants (FGD)
Direction of installation:
  • From the impeller side: HR10
  • From the bearing side: HR11
